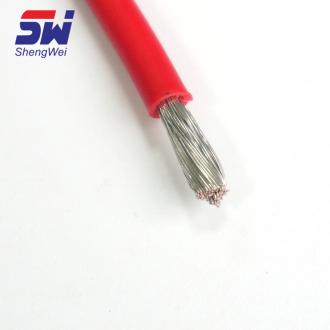

UL1032 PVC電子線
發布時間：2026-01-21 11:55:34來源：無錫勝維電氣編輯部
UL1032 HOOK-UP WIRE 連接線
◎額定溫度：90℃
◎額定電壓：1000V/1200V
◎參考標準：UL758,UL1581,CSA
◎?qū)w使用單支或絞合28~4/0AWG 鍍錫或裸銅
◎絕緣：PVC 符合ROHS、REACH 環保要求
◎阻燃：通過VW-1、FT1阻燃測試
◎用途：用于一般電子、電器設備內部連接線
| CONDUCTOR 導體 | INSULATION 絕緣 | Conductor resistance | 耐壓強度 | ||||
| 導體電阻20℃ | DIELECTRIC STRENGTH | ||||||
| 規格 | 構造Construction | 外徑 | 標稱厚度Nominal Thickness | 外徑 | 鍍錫銅 | 裸銅 | VAC,1MIN |
| AWG | Diameter | Diameter | Tinned copper | Bare Copper | |||
| 28 | 7/0.127 | 0.38 | 0.76 | 2 | 239 | 223 | 2000 |
| 26 | 7/0.16 | 0.48 | 2.1 | 150 | 140 | 2000 | |
| 24 | 11/0.16 | 0.61 | 2.25 | 94.2 | 87.6 | 2000 | |
| 22 | 17/0.16 | 0.76 | 2.4 | 59.4 | 55.4 | 2000 | |
| 20 | 26/0.16 | 0.94 | 2.55 | 36.7 | 34.6 | 2000 | |
| 18 | 41/0.16 | 1.18 | 2.8 | 23.2 | 21.8 | 2000 | |
| 16 | 26/0.254 | 1.49 | 3.1 | 14.6 | 13.7 | 2000 | |
| 14 | 41/0.254 | 1.88 | 3.5 | 8.96 | 8.62 | 2000 | |
| 12 | 65/0.254 | 2.37 | 4 | 5.64 | 5.43 | 2000 | |
| 10 | 105/0.254 | 3.42 | 5.05 | 3.546 | 3.409 | 2000 | |
| 8 | 168/0.254 | 3.8 | 1.14 | 6.4 | 2.23 | 2.144 | 2000 |
| 6 | 266/0.254 | 4.78 | 1.52 | 8.5 | 1.403 | 1.348 | 2000 |
| 4 | 420/0.254 | 6.01 | 9.8 | 0.882 | 0.8481 | 2000 | |
| 2 | 668/0.254 | 7.58 | 11.8 | 0.5548 | 0.5335 | 2000 | |
